Should wet compressed air receiver tanks be outdoors?

September 20, 2023 By Paul Heney

Share

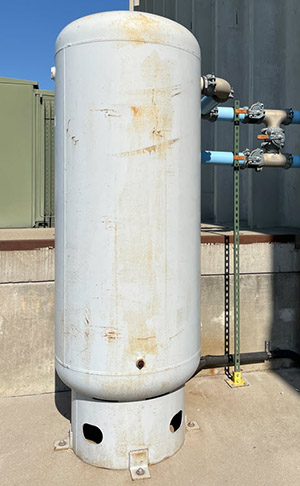

Fig.1. This wet receiver tank is installed outdoors and helps to cool the compressed air before it reaches the air dryer. Special considerations need to be designed in if the tank is subject to freezing in winter months.

During plant inspections, it is often noticed that compressed air receiver tanks are installed outdoors. This is done for a reason — and is a good idea, in many cases, because it benefits the operation of air drying and filtering equipment and produces better quality compressed air when hot summer days cause worst-case conditions.

Here are some tips in installing outdoor air receivers:

  • The outdoor receivers are normally “wet receivers” meaning they are installed before the air dryer. If the receiver is in a cooler location than inside the compressor room the flow of compressed air will cool slightly, and water will condense out of the airstream. If there is any free water within the flow, then this will be deposited on the bottom of the receiver also.
  • Every 20° F reduction in temperature will drop about half the water vapor from the saturated airstream — this greatly reduces the moisture loading on the air dryer and helps maintain good air quality.
  • Realize the tank must be cooler than the compressor room; a tank sitting in direct sunlight on the South side of the building may not achieve adequate cooling unless protected with shrouding or roofing.
  • Uncoated wet tanks will corrode inside, especially if the condensate is acid due to industrial gases that the compressors may ingest. Be sure to inspect the tank regularly and keep the condensate drains operating correctly.
  • In climates where winter freezing may be common, the receiver condensate drain must be protected from ice blockage by good designed and heat taping.
  • Fig. 2. On a hot summer day, the outdoor wet receiver captures lots of water (and oil). The condensate drain needs to be working correctly or excess moisture will build up in summer. In winter freeze protection must be installed to ensure the water and lubricant can drain.

    Ensure the pipes to and from the tank are protected and insulated if freezing temperatures are going to be a problem.

  • Some Northern climates allow ambient temperatures to fall vary low, realize that receiver tanks have a minimum temperature rating, below which the metal walls become too brittle to be safe. Always ensure you keep the tank within rating.





You may also like:


  • Compressed air fail: Air water cooling

  • Compressed air fail: Units conversion

  • Compressed air fail: Cycling dryer savings

  • Compressed air fail: Frankenstein controls

Filed Under: Air Compressors, Air Preparation

Reader Interactions

Comments

  1. William Ketel says

    September 21, 2023 at 2:14 pm

    This article makes very good points, and certainly outside is cooler than any compressor room I have visited. Freezing is a valid concern also, I had not thought about that.
    One added reason to keep the tanks outside, not mentioned but certainly valid, is safety! In the event of a catastrophic tank failure, far better that it happens far away from people and physical assets.
