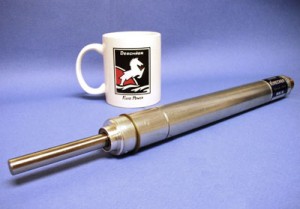

A heavy duty version of the Slimline Kinechek ,the high capacity model is suitable for use in applications with an excess of 1200 lbs. force. The leak-proof Kinechek High Capacity Speed Regulator can handle difficult jobs, enabling loads of up to 2400 lbs. force to be controlled. (Including impact when load strikes plunger.) The High Capacity Kinechek packs substantial load handling capacity into a reasonably sized unit. Tip to Tip, the unit measures 17 in. with a 1.25-in. diameter body. The plunger rod measures ½ in. in diameter and is hardened on end for long wear life. This model is available in a 2- or 3-in. stroke unit. High Capacity Kinecheks have been used to control all types of robotics, milling operations, packaging machines and food processing equipment. The ID of the hardened tool steel high-pressure cylinder with an adjustable flow control passage is mirror-finished and mated to an all metal piston with no sliding seals. This design makes the plunger rod on all kinecheks move smoothly at a constant rate throughout the entire stroke.
