Series 6PF cylinder from Camozzi features integral linear potentiometer

December 9, 2016 By Paul Heney

Share

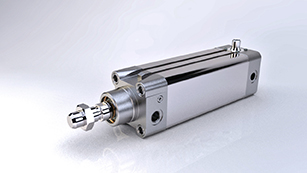

Camozzi Pneumatics designed the Series 6PF Positioning Feedback Cylinder to increase both precision and control in its pneumatic actuators. In compliance with ISO 15552 standards, the Series 6PF is equipped with a potentiometric transducer of a linear position integrated inside the rod. This type of cylinder, when used with the LRXA4 proportional servo valve, makes it possible along the entire stroke to constantly control the position of the rod. The pistons of the Series 6PF are equipped with specific seals for increased accuracy and a permanent magnet in order to use external end-stroke sensors.

The sturdy design, high performance and flexible installation make the Series 6PF ideal for use in applications including: tensioning cylinders, positioning cylinders and filling/cutting/measuring systems. Technical specifications include:
• Bores from 50 mm to 125 mm
• Standard strokes from 50 mm to 500 mm (50 mm intervals)
• ISO 15552 compliant
• Protection class IP67
• Assembly with standard ISO accessories

Camozzi Pneumatics produces a complete range of manual, mechanical, air-piloted, solenoid and proportional valves in a full array of functions and ports sizes from 10-32UNF to 2 in. These valves consist of both modular and in-line designs with direct and indirect operators capable of handling positive pressure as well as vacuum.

Camozzi USA
